FEATURES & BENEFITS

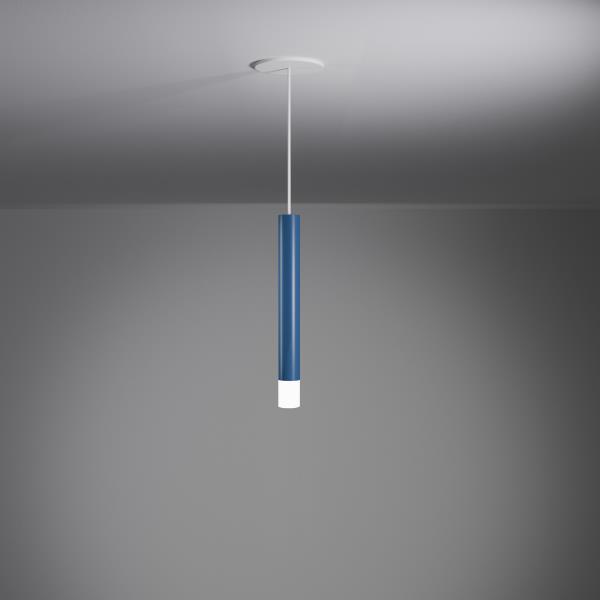

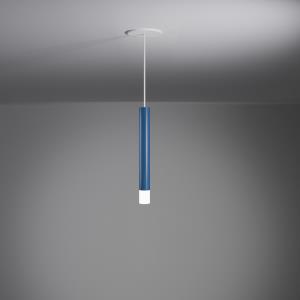

- Sleek 1.5" diameter
- Mix-and-match housings and lenses to create the perfect cylinder for all your spaces
- Aluminum housing can be finished in vibrant colors or sophisticated metals
- Choose from clear or matte lens materials
- Handcrafted in the USA
SPECIFICATIONS
- LIGHT SOURCE: White LED Light Engine
- CRI: 80+ or 90+
- LUMEN MAINTENANCE: L80 = >55,000 Hrs.
- EFFICACY: up to 61 lm/W delivered
- CCT: 2700K, 3000K, 3500K, 4000K, or 5000K
- VOLTAGE: 120-277V standard
- DRIVER: Class 2 power supply integrated in canopy standard; remote optional. Max distance to the driver (including OAH) is: #18AWG = 50’, #16AWG = 75’, #14AWG = 100’. For extended distances, contact factory
- DIMMING: 1% minimum dim level standard
- CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
- EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 minutes of emergency operation. Contact factory for other emergency options.
- INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events

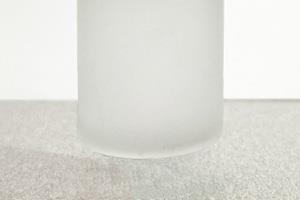

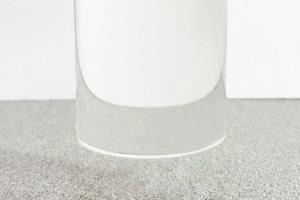

- DIFFUSER: Clear acrylic diffuser standard; matte acrylic diffuser available for some lens sizes
- CONSTRUCTION: Extruded and machined aluminum housing, heat sink, and mounting point.
- FINISH: Brushed Aluminum, or choose from 26 standard thermoset polyester powder coat paint colors for housing components. Canopy components painted to match finish. RAL®, Pantone®, various metal finishes, or other custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests; including different sizes
- APPROVALS: ETL listing to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications.

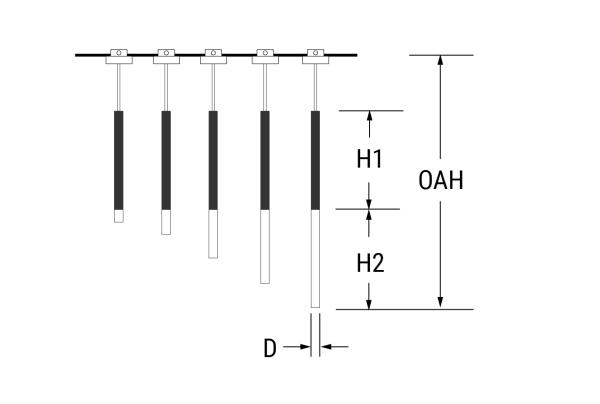

DIMENSIONS
Dimensions

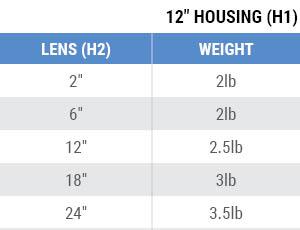

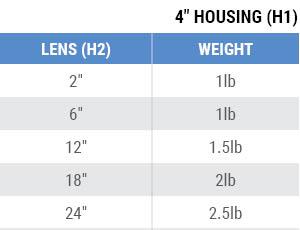

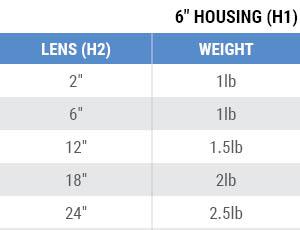

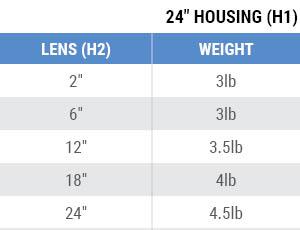

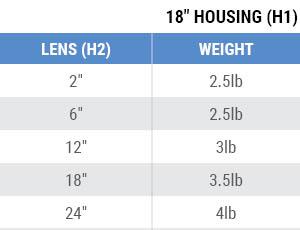

Mounting Weight
Consult Factory.
