Pavo Sleek
Unrivaled Versatility. Formal to Fun.
SIP12389 2 in
Pavo Sleek

5 Housing Lengths | 5 Lens Lengths | 25+ Finishes

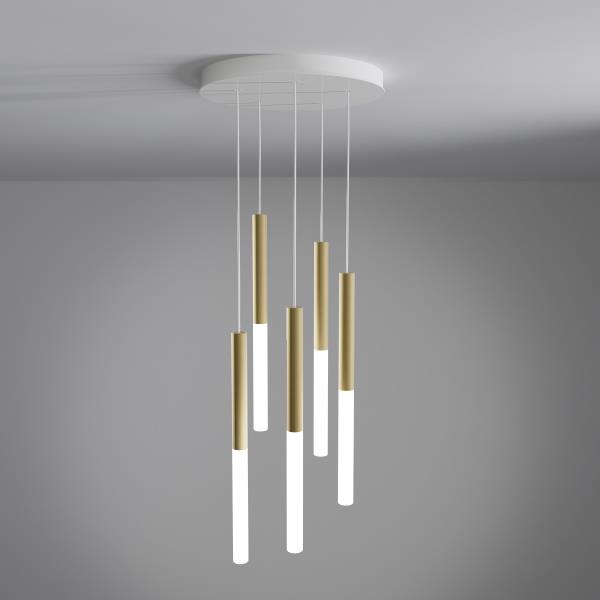

Pavo Sleek stands in a league of its own with a myriad of housing and lens lengths to choose from (five of each, to be exact). This unrivaled versatility makes it a perfect fit for any decor style and space, be it a cozy restaurant or an airy modern office. With more options than ever before, Pavo Sleek is your canvas to create a lighting experience that truly reflects your individuality.

Pavo Sleek SIP12389

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Sleek 1.5" diameter cylinders
  • Choose your housing and lens lengths to create the perfect fixture for all your spaces
  • Aluminum housings can be finished in vibrant colors or sophisticated metals
  • Choose from clear or matte lens materials
  • Handcrafted in the USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED Light Engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >55,000 Hrs.
  • EFFICACY: up to 61 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, or 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Class 2 power supply integrated in canopy standard; remote optional. Max distance to the driver (including OAH) is: #18AWG = 50’, #16AWG = 75’, #14AWG = 100’.  For extended distances, contact factory
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional.  Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 minutes of emergency operation. Contact factory for other emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Clear acrylic diffuser standard; matte acrylic diffuser available for some lens sizes
  • CONSTRUCTION: Extruded and machined aluminum housing, heat sink, and mounting point.
  • FINISH: Brushed Aluminum, or choose from 26 standard thermoset polyester powder coat paint colors for housing components. Canopy components painted to match housing. RAL®, Pantone®, various metal finishes, or other custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests; including different sizes and configurations
  • APPROVALS: ETL listing to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

DIMENSIONS

Dimensions
W
18.6 in
47.3 cm
D
1.5 in
3.8 cm
OAH
72 in
182.9 cm
W2
11.5 in
29.2 cm

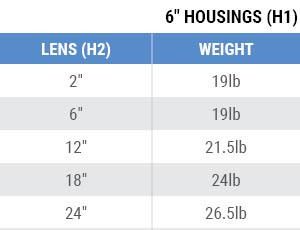

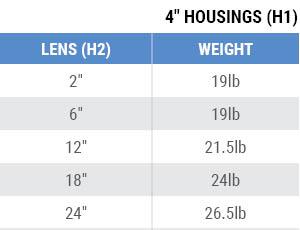

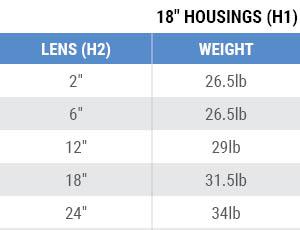

Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

(5) L10W | White 50W LED Light Engine

Delivered Lumens: 3,075
(5) L15W 1 | White 75W LED Light Engine

Delivered Lumens: 4,612

1 High wattage option only available on 12" or larger housing lengths

Voltage *

120-277V | Universal Voltage

Lamp Options *

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Housing Height *

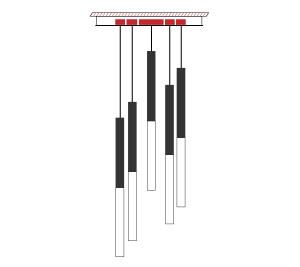

The clustered configurations can only be specified as standard with all cylinders having the same H1 and the same H2 lengths within the cluster. They can be specified as a modified product to have different H1 and different H2 lengths within one cluster. Select your housing length (H1).

4IN-H1 | 4" Housing
6IN-H1 | 6" Housing
12IN-H1 | 12" Housing
18IN-H1 | 18" Housing
24IN-H1 2 | 24" Housing

2 This option may be subject to extended lead time

Lens Height *

The clustered configurations can only be specified as standard with all cylinders having the same H1 and the same H2 lengths within the cluster. They can be specified as a modified product to have different H1 and different H2 lengths within one cluster. Select your lens length (H2).

2IN-H2 3 | 2" Lens
6IN-H2 3 | 6" Lens
12IN-H2 | 12" Lens
18IN-H2 | 18" Lens
24IN-H2 | 24" Lens

3 Matte Lens option only available with 2" and 6" Lens Heights
2IN-H2
6IN-H2
12IN-H2
18IN-H2
24IN-H2

Diffuser *

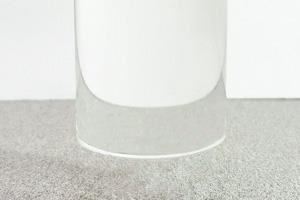

DF_CLGA | Clear Light Guiding Acrylic Diffuser Lens (default)

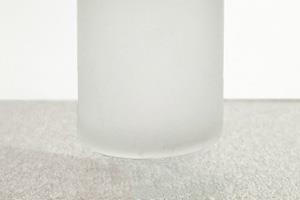

MATTE 3 | Matte Acrylic Diffuser Lens

3 Matte Lens option only available with 2" and 6" Lens Heights
CLGA
MATTE

Mounting *

Mounts to standard 4" octagonal junction box. White power cord standard, adjustable up to OAH. Canopies for the remote power supplies feature minimal profile with a 22.5 degree swivel. Choose a mounting from below:

PSC | Power Supply Canopy with Cord Suspension
PSS | Power Supply Canopy with Stem

PSC
PSS

Options

BPC 4 | Black Power Cord

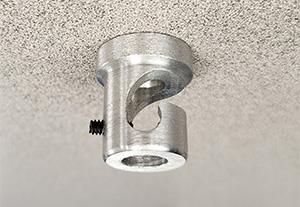

SWG 5 | Swag Hook

4 Not available with PSS mounting option
5 Not available with PSS mounting option. Swag Hook option only available with PSC mounting
SWG

Other Than Standard Options

OAH | Pendant suspension length other than standard
Enter length:   Select a light source
OAH

Request a modification
