Zynn 3" Lines - Exterior
IP66 Recessed Wall | Vertical & Horizontal Mount | Fully Luminous 90-degree Corners
AES12444 3 in
Zynn 3" Lines - Exterior

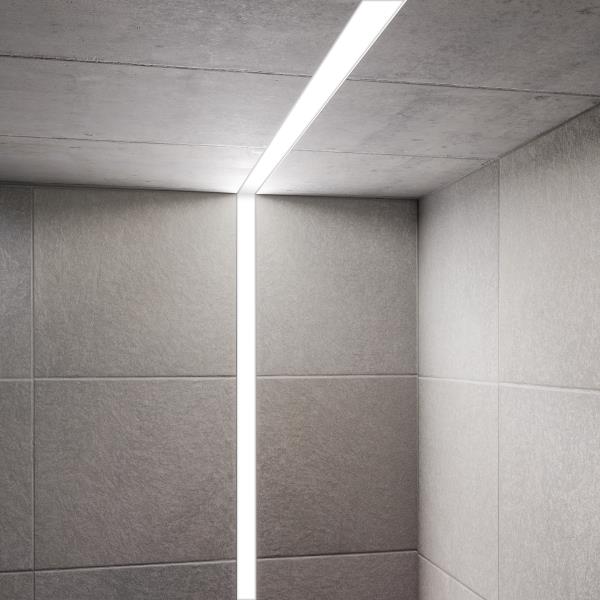

Our IP66 recessed wall and ceiling fixture provides continuous lines of uninterrupted light for building facades and awnings. Engineered for vertical and horizontal mounting, our fixture has unique, fully luminous 90-degree corners, no visible hardware, and is designed to withstand prolonged moisture exposure, extreme heat and the bitter cold. The Zynn 3” Lines- Wet Location is the perfect fixture for exterior and natatorium applications, and is one of the most versatile wet location linear products on the market.

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Mount it vertically or horizontally on ceilings and walls
  • Wide 3" aperture softly diffuses light
  • Uniform illumination with no visible shadowing or view of diodes
  • Recessed mounting
  • Trimless housing
  • No visible fasteners give the fixture a clean look
  • Dead front with no conductivity
  • Acrylic diffuser resists yellowing
  • Ideal for emergency lighting with remote power supply
  • Light engine and electronics are fully accessible after installation and designed for easy serviceability
  • Mount individually or create continuous lines of light
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • INGRESS PROTECTION: IP66
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 50 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • MAX AMBIENT OPERATING TEMP: 50°C (122°F)
  • MIN AMBIENT OPERATING TEMP: -20°C (-4°F)
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Diffused acrylic
  • EMERGENCY: Emergency battery remote optional
  • CONSTRUCTION: 2', 3', and 4' lengths have a seamless housing and diffuser. 6' and 8' lengths are fabricated in a two-part modular housing and have a seamless diffuser. Housing fabricated from aluminum. Corrosion resistant fasteners.
  • FINISH: Flanged housing is finished to your specification. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate lengths or remote drivers
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations. Not rated for Insulation Contact.

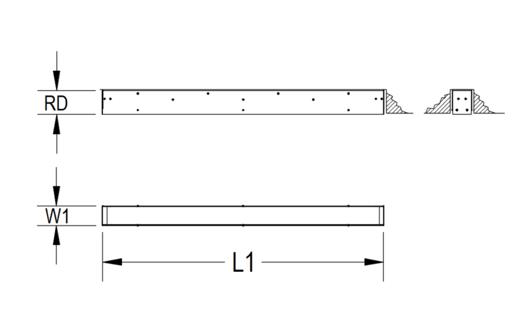

DIMENSIONS

Dimensions
2FT
L1
24 in
61 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
Mounting Weight: Approximate: 10 lb (5 kg)
3FT
L1
36 in
91.4 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
Mounting Weight: Approximate: 13 lb (6 kg)
4FT
L1
48 in
121.9 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
Mounting Weight: Approximate: 15 lb (7 kg)
6FT
L1
72 in
182.9 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
Mounting Weight: Approximate: 26 lb (12 kg)
8FT
L1
96 in
243.8 cm
RD
4 in
10.2 cm
W1
3.2 in
8.1 cm
Mounting Weight: Approximate: 30 lb (14 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

2 FOOT NOMINAL FIXTURE
2FT-L14W | White 14W LED Light Engine
2FT-L28W | White 28W LED Light Engine
3 FOOT NOMINAL FIXTURE
3FT-L21W | White 21W LED Light Engine
3FT-L42W | White 42W LED Light Engine
4 FOOT NOMINAL FIXTURE
4FT-L28W | White 28W LED Light Engine
4FT-L56W | White 56W LED Light Engine
6 FOOT NOMINAL FIXTURE
6FT-L42W | White 42W LED Light Engine
6FT-L84W | Whtie 84W LED Light Engine
8 FOOT NOMINAL FIXTURE
8FT-L56W | White 56W LED Light Engine
8FT-L112W | White 112W LED Light Engine

Voltage

120-277V | Universal Voltage

Lamp Options

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI

80 | (default)
90

Mounting

Fits within a 3.5" deep wall/ceiling cavity.

REC | Trimless Recessed Mount (default)

Linear Run

Runs have a 1/8" expansion gap between diffusers. The light is continuous.

RUN | Continuous Run
OAL | Specify Length of Run
  ft.

Options

When the NAT option is selected, you can feel confident that the luminaire specified is designed with high-quality materials that will withstand the corrosive environment of indoor pools. Electrical components are protected from moisture and the fixture has been tested to operate in warm ambient temperatures.

NAT | Natatorium Construction
F | Fusing
